AGF

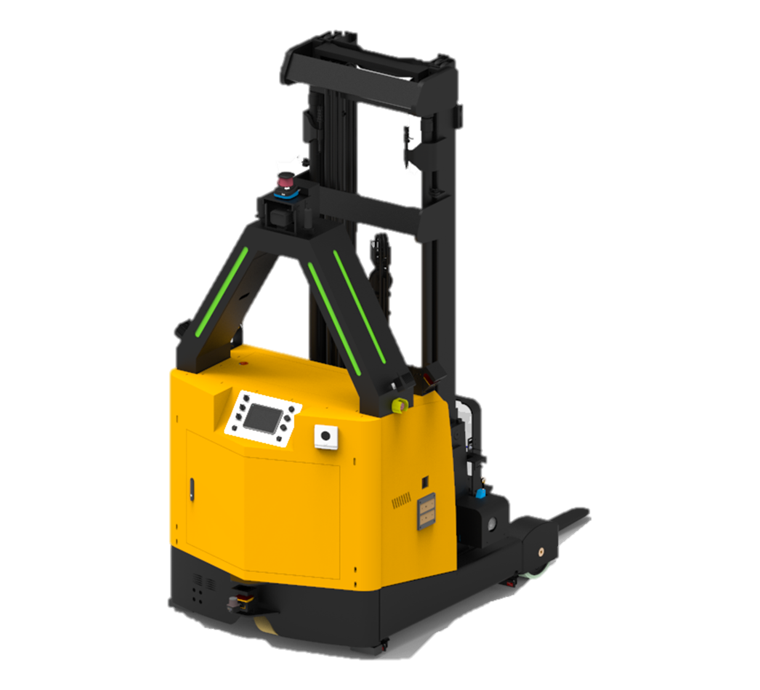

High Reach AGF

A high-reach mast that extends up to 10,500 mm, designed for operation in racking systems with a 3,500 mm aisle width.

• Dimensions

  2,570(L) x 1,270(W) x 2,445(H) mm

• Max speed

  1.7 m/sec

• Load capacity

  1,600 kg

• Positioning accuracy

  ±5 mm

• Max lift height

  10,500 mm

• Battery

  Lithium battery 48 V 200 Ah

• Indicator

  Speaker, LED Lights

• Reference

  Food and Beverage Raw Materials Warehouse (with Drive-in-rack)
