Auto Warehouse System
-
- Reference
- Aircraft Logistics Warehouse, Pharmaceutical Goods Logistics Warehouse
-

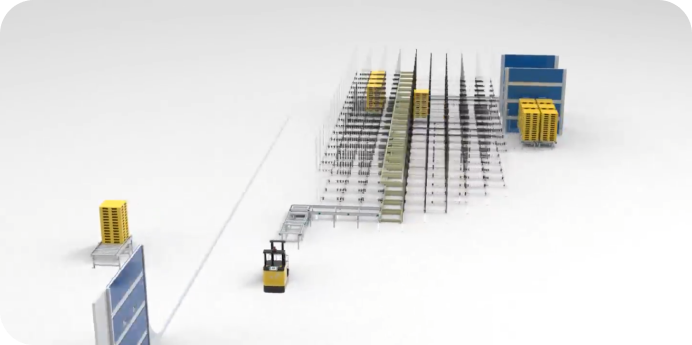

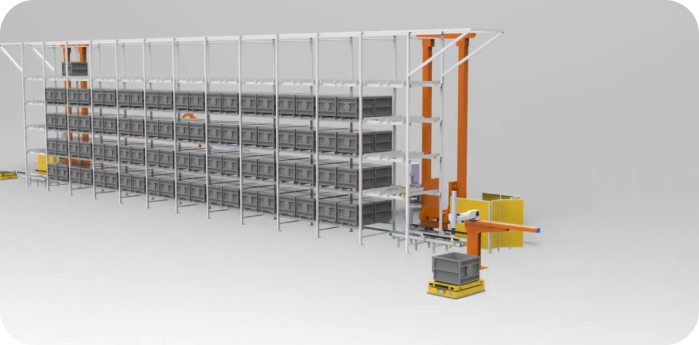

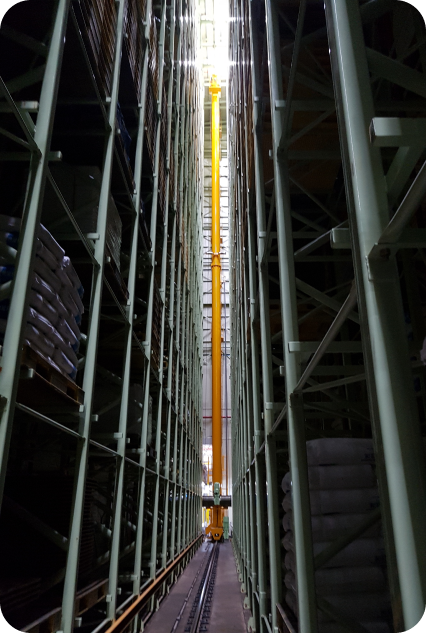

Auto Warehouse System with Stacker Crane An automated warehouse system is structured using an integrated combination of stacker cranes, conveyors, and RGVs (Rail Guided Vehicles). This configuration supports rack heights exceeding 20 meters, with scalable implementations reaching up to 50 meters, thereby maximizing vertical space utilization and overall operational efficiency. The system is ideally suited for high-throughput environments such as large-scale manufacturing facilities and distribution centers, where rapid handling of large volumes of goods is essential for maintaining logistical performance.
-

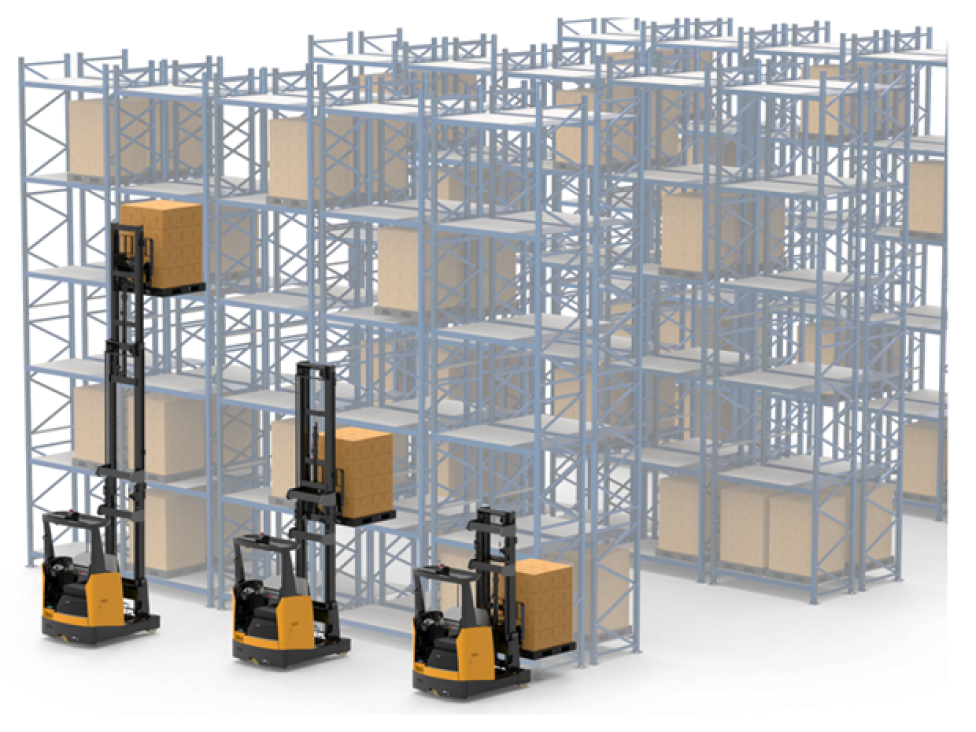

Auto Warehouse System with AGF & Shuttle The AGF system enables the implementation of an automated warehouse environment without the need for traditional infrastructure elements such as stacker cranes and RGVs (Rail Guided Vehicles). This streamlined setup significantly reduces capital investment compared to conventional stacker crane- based systems. Furthermore, when combined with a shuttle system, it enhances storage density by maximizing cargo volume within the same floor area. The AGF-based warehouse solution is particularly well-suited for intra-factory logistics, cold storage operations, and 3PL (Third-Party Logistics) facilities featuring rack heights of up to approximately 15 meters.
